Albury Casting

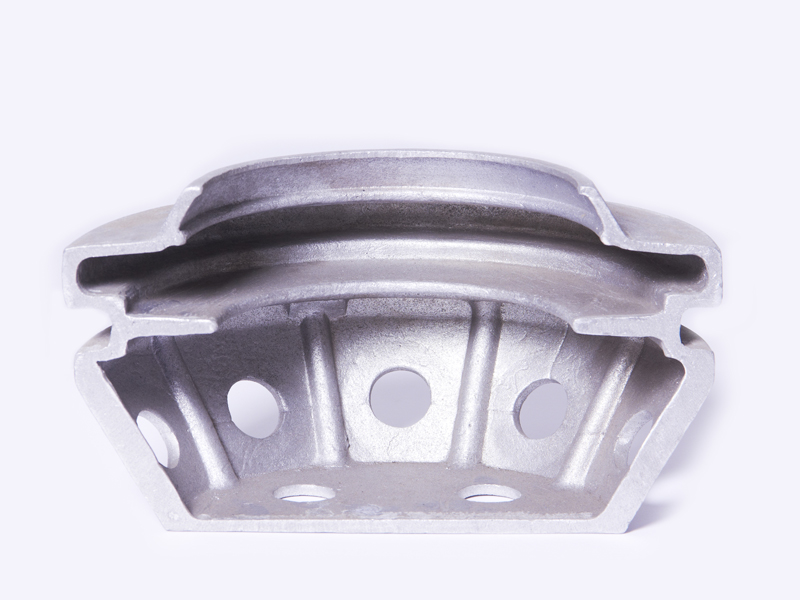

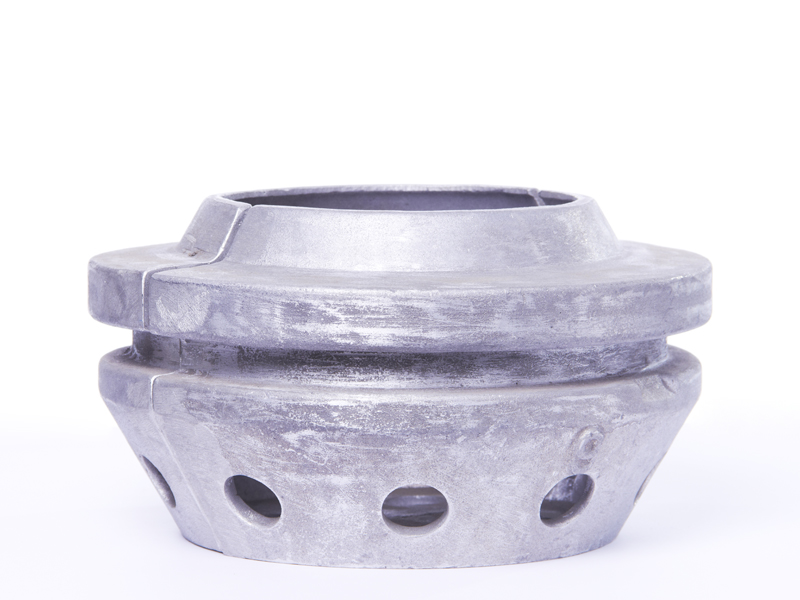

Table D/E/ANSI & Bauer Aluminium Split Strainer

Price range: $225.00 through $450.00

Strainers are used to extract slurry or water from construction sites, riverbeds, or any body of water. They function as a 1st stage rough filter, preventing large particles from entering and clogging the pump system.

The strainer connects to a female Bauer type coupling and is sealed with a shore 75 (hardness) EPDM O-ring for a secure fit.

Made from sand-cast LM20 aluminum alloy, the strainer offers excellent environmental resistance along with reliable strength.

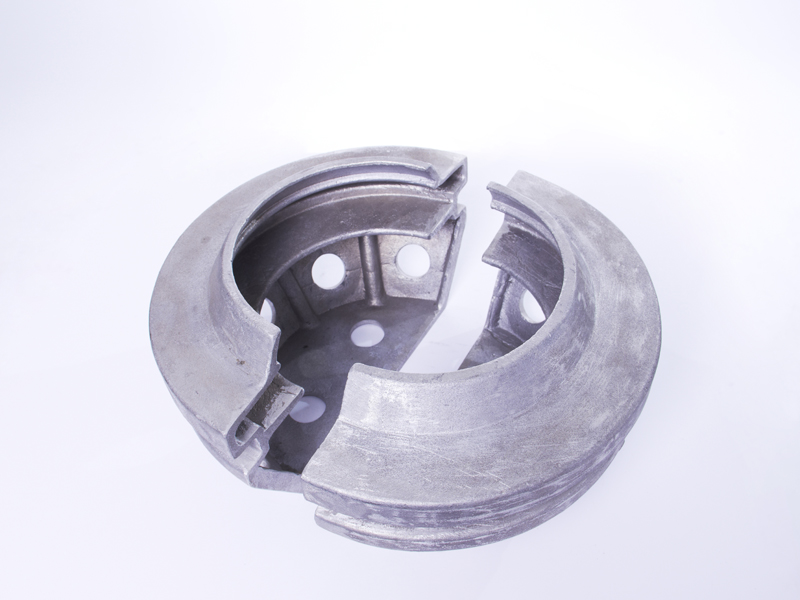

A rubber sealing ring, which joins the two halves of the strainer, is included as standard.  This rubber ring is sacraficialy  so if the strainer is caught the ring rill break first.  Extra rings are avaiable for purchase upon request.  Please contact us for any enquiry at sales@alcast.com.au

Add to compare
Add to wishlist
Size Chart

SizeImperialHole Size (mm)Outside Ø (mm)Height (mm)
100mm4"Ø35Ø245175
150mm6"Ø50Ø310170
200mm8"Ø50Ø350190
