Foot Clamp Jaws
Price range: $681.00 through $1,066.00
Machined out of solid rolled steel our jaws are interchangeable with other UDR/Sandvik style footclamps (or KWL style).
The sizes available are from: BQ (Ø55.6) all the way up to SW (Ø168.3). Apart from the SW which is made to order we keep them in stock most times. Jaw sets are sold fitted with replaceable hardened tool steel teeth.
| Pipe Size | Pipe Dia. | Set Weight | Stock Australia | Stock Malaysia |
|---|---|---|---|---|
| BQ | Ø55.6 | 21kg | Yes | Yes |
| NQ | Ø69.9 | 18kg | Yes | Yes |
| HQ | Ø88.9 | 15kg | Yes | Yes |
| PQ | Ø114.3 | 11kg | Yes | Yes |
| PWT | Ø139.7 | 30kg | Yes | Yes |
| SW | Ø168.3 | 24kg | No | No |

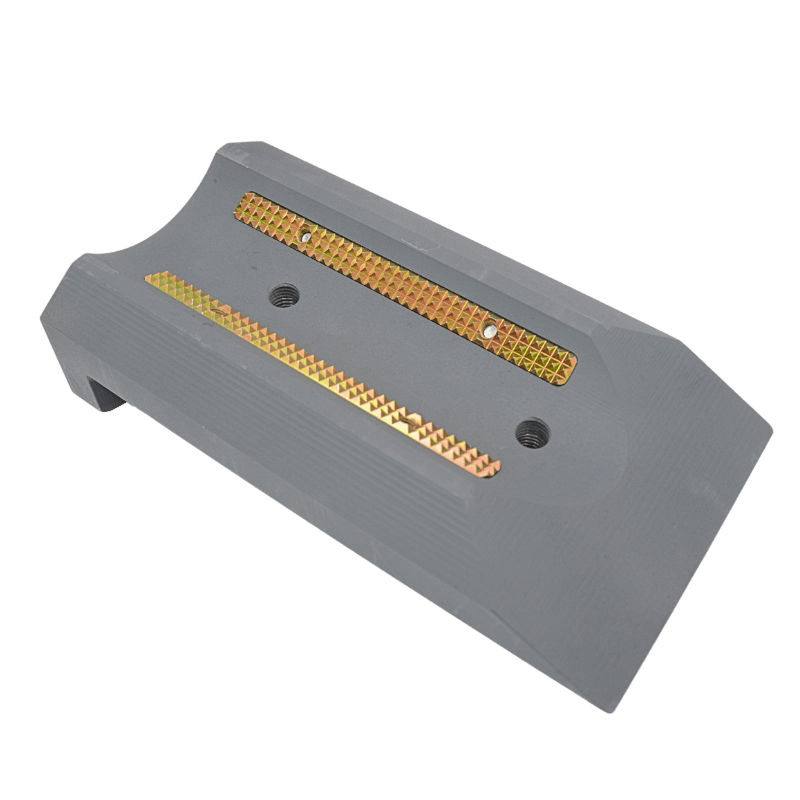

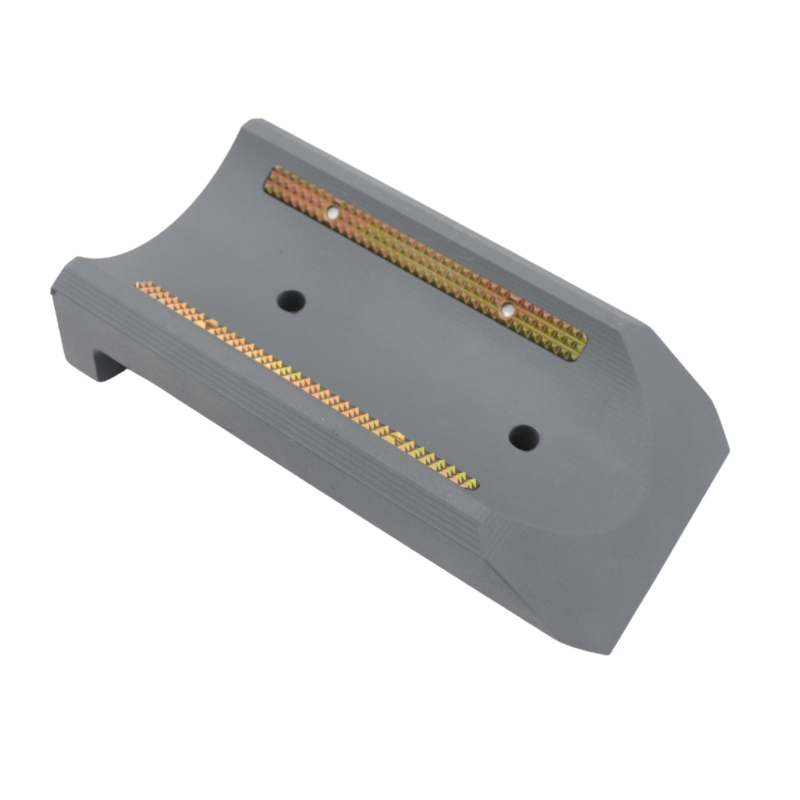

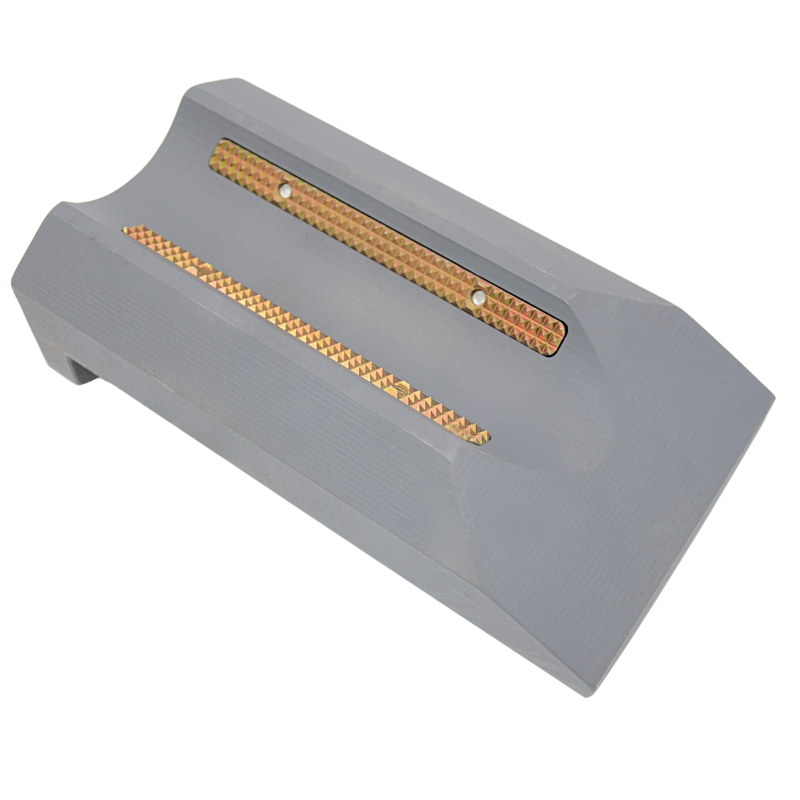

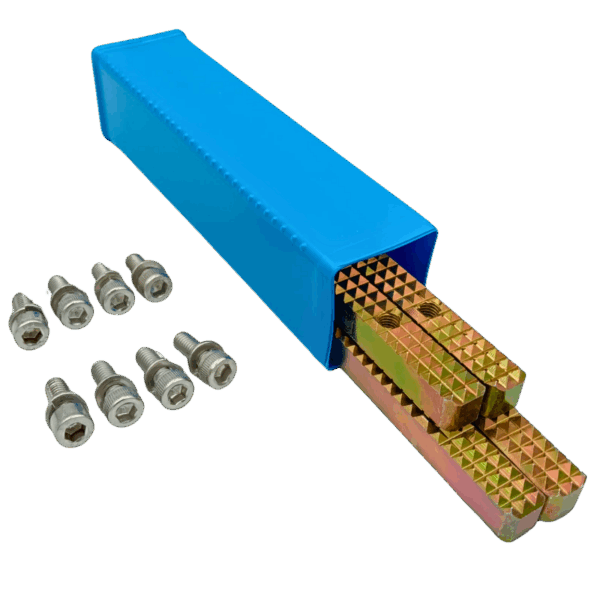

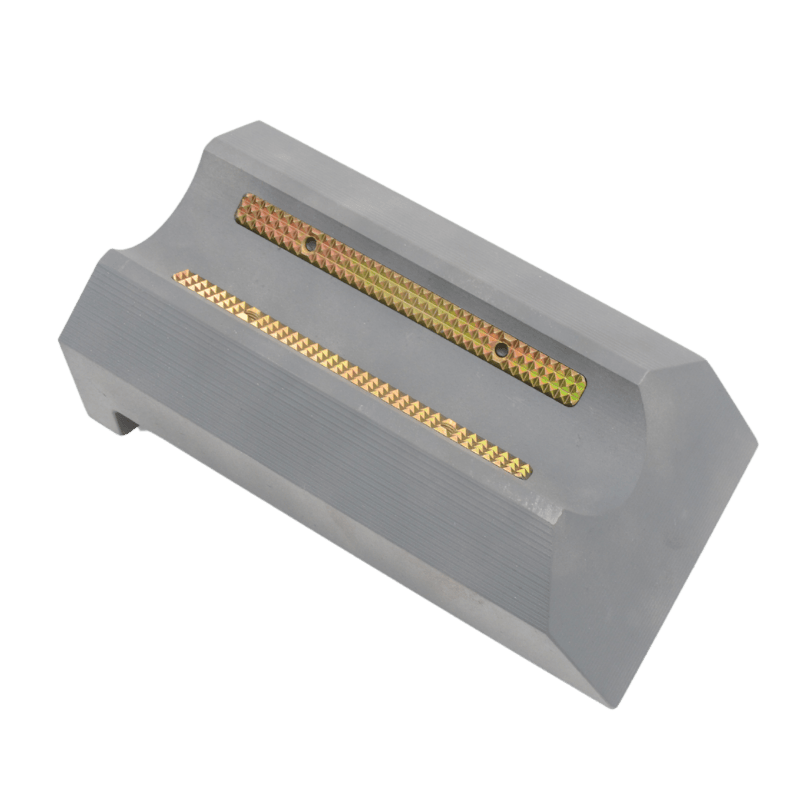

The AlCast footclamp jaws are a design variation based of the older brazed in carbide style. The jaw itself is machined from solid block steel in only 2 setups on out 5 axis CNC. Doing this results in a accurate and consistent gripping force onto the drill pipes. The teeth are machined from tool steel which has then been hardened to 55hrc. The advantage of this is that the teeth can be replaced in the field in minutes instead of having to bring a number of heavy spare jaws along. The teeth are the same across all sizes.
We have been selling our jaws for many years and have been constantly improving both reliability and manufacturing consistency.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Rod Size |
BQ (Ø55.6) ,NQ (Ø69.9) ,HQ (Ø88.9) ,PQ (Ø114.3) ,PWT (Ø139.7) |
